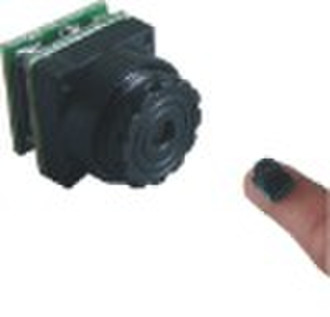

Supper small 520TVL Mini CCTV Camera 9.5X9.5X12mm;

Features & functions It's a ultra small high definition CCTV camera with excellent night vision Size is 9.5x5x12mm only, Weight is 1g, Very easy to install and conceal Minimum illumination is 0.008lux, which can view clearly in almost complete darkness Full TV system Applicable worldwide Use for Home and Business Security, Shops, Pubs and Restaurants, Building Sites, Warehouses, Boats, Marine Use, Sports use, Wildlife, Farms, Stables and Kennels, Surveillance and Covert use, Nursery and child care, Fire alarm. Ready AV/BNC cable and power supply cable. Just plug and play Contents Mini camera x 1, RCA/BNC cable x 1, AC adapter x 1 Specification PICK UP ELEMENT: Single chip 1/3 CMOS SYSTEM: NTSC & PAL NUMBER OF PIXEL NTSC:656(H)x492(V)PAL 786(H)x576(V) IMAGE SIGNAL PROCESS: Digital Signal Processing System SENSOR DIMENSION: 4.75mm(H)x3.55mm(V) HORIZONTAL RESOLUTION: 520TV lines SCANNING SYSTEM: 2: 1 Interlace SENSITIVITY: 0.008Lux/F1.2 LENS & VIEW ANGLE:0.5mm F2.0 / 62 ° S/N RATIO: 48dB VIDEO OUT: 1.0V p-p/75ohm SIZE: (L x W x H) 9.5mm x 9.5mm x 12mm WEIGHT: 1g WORK CURRENT: 75mA POWER REQUIREMENTDC: 3.3V-6V or 9 12V OPERATING TEMPERATURE:- 10° C +50°C ,less than 90% RH Connection:PIN1=> Red DC5VPIN2=> Black GND PIN3=> Yellow VIDEO OUT Usage 1. CCTV cameras can be used directly with a standard TV/VCR or RCA video monitor 2. To view more than one CCTV camera on your TV/VCR you will need a quad or multiplexer 3. To view on your computer or laptop you will need a DVR card or USB 4. A standalone system that records is a standalone DVR
